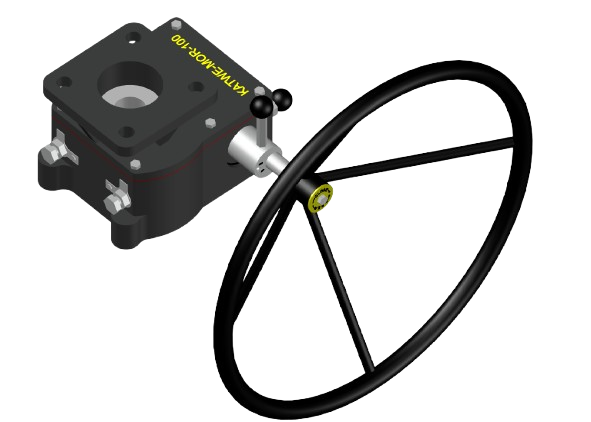

Manual Override Gearbox (MOR)
Katwe Industries offers a comprehensive range of manual override gearboxes engineered to provide reliable manual control for industrial pneumatic actuators. Featuring a compact and robust construction, they offer an optimized mechanical ratio that significantly reduces operating effort.
Torque Range: 250 Nm to 2,500 Nm
Product Gallery
Standard QT Series
QT Series with Sub-Gearbox
QT Series with Pad Lock & Limit Switch Mounting
QT Series with Pad Lock
Key Features
- CI housing & cover
- High performance thrust bearings
- Alloy steel-worm & input shaft
- MS Fabricated Handwheel
- Light weight with rugged design
- Environmentally friendly high-performance grease
- IP-65 certified gearboxes
- Temperature range -30℃ to +160℃
- Gear box mounting as per ISO 5211 standard
Optional Features
- Materials: Housing and cover also available in SG Iron, Stainless Steel and Nickel Aluminum Bronze material
- Hardware: Stainless Steel fasteners and handwheel
- Finish: Custom paint or powder coating according to customer specification
Quality Assurance & Testing
Torque Measurement
Test Rig to measure the output torque
250 Nm to 2,500 Nm
184.4 lb-ft to 1,843 lb-ft
Reliability Testing
Test rig for cyclic test to measure number of cycles and reliability of gearbox
DFT Meter
DFT Meter to check the thickness of the paint
Hardness Testing
Hardness testing machine to check the hardness of components of gearbox
